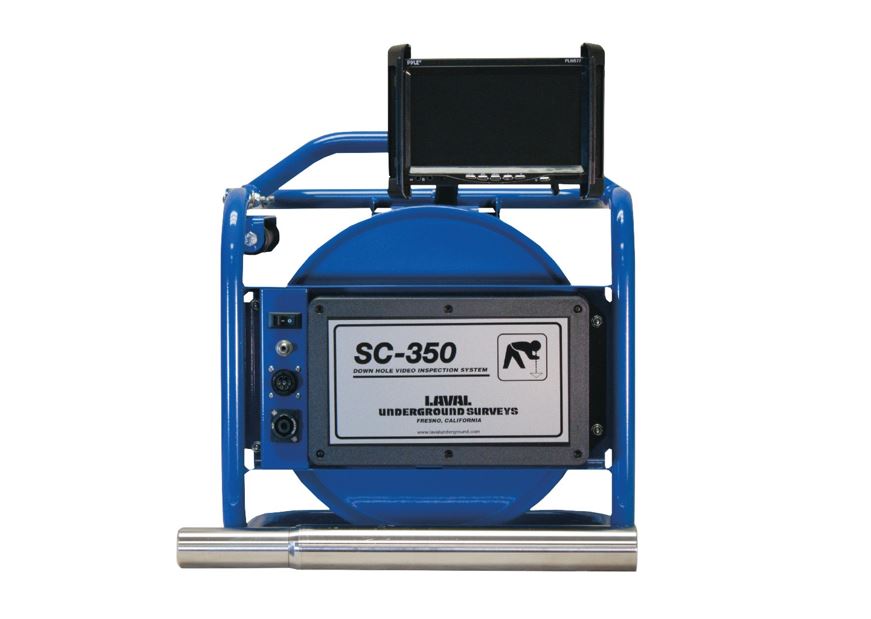

The SC-350 is an ultra-light, compact, camera system with the SC-166 water well camera designed for water wells, boreholes, and vertical shafts as small as 2 inches (5 cm) to 10 inches (25 cm) in diameter Additional lighting accessories are available to expand the viewing capabilities. The winch is manually operated with a collapsible handle to make it completely compact, portable and easily shippable. The brake lever allows the user to stop the reel at any point for a thorough inspection.
The system comes standard with the winch, control center, monitor, SC-166 Camera, and power cable. The SC-350 is also compatible with Laval’s R-Cam line of equipment which allows the option to upgrade to an R-Cam System or compliment their existing R-Cam.
NEW SC-350 Portable camera system for water wells and boreholes from 2" inches (5cm) to 10" inches (25cm)
- Ultra-light, compact and portable
- Survey water wells, boreholes and Vertical shafts from 2" inches (5cm) to 10" inches (25cm) wide 350 feet (107m) deep.
- Manually operated winch with collapsible handle
- 9" touch screen monitor with built in recording/playback
- Braking system allows 360 degree stopping capability
- Standard system includes: winch, control center, monitor, camera and power cable
- Completely compatible with R-CAM products series, easily upgrade the system or compliment an existing R-CAM
- Full line of SC-350 accessories including depth counter tripod assembly available
Note: Tripod does not come as standard, accessories sold separately
SC-166 Camera Specifications
- Camera diameter: 1.66" inches (4.22cm) O.D.
- Overall camera length: 1.65" inches (42cm)
- Housing: Stainless steel
- Lens: BK-7 glass
- Total camera weight: 9 Ibs (4.1kg)
- Pressure rating: Pressure tested and waterproof to 750psi
- Camera resolution: Downhole greater than or equal to 540 TVL (both NTSC and PAL)
- Operating temperature: 0º to 50°C (32° to 122°F)
- LED lighting: 18 high intensity, long life, shock proof LEDs
SC-350 Winch Specifications
- Cable: 350 feet (107 meters) or 500 feet (152 meters) of kevlar reinforced coaxial cable
- Cable head: detachable Laval quick-connect cable head, pressure rated to 5,000 PSI with built in strain relief
- Drive: Manual hand crank reel with collapsible handle to maximum portability
- Power supply: 12VDC power cable, optional 12V battery pack or 120VAC/220VAC adapter
- Brake: Interlocking, manual brake with actuator lever for 360 degree stopping capability
- Dimensions: 17" inches high (43cm), 15.5" inches wide (40cm), 15 " inches deep (39cm)
- Weight: 22 Ibs (10kg) without cable, 30 Ibs (13.6kg) with 350 feet (107m) and 33 Ibs (15kg) with 500 feet (152m)
- Monitor: 9" touch screen monitor with built in recording/playback
- Depth counter: Encoder ready, on-screen depth display measured in feet and tenths or meters with optional tripod
- Tripod: (optional) Tripod with telescoping legs extends from 33" inches (84cm) to 48" inches (122cm) with adjustable sheave roller. Optical depth encoder, counter wheel and connecting cable available
- Video output: RCA composite video output
Note: Specifications subject to change; please confirm when ordering.
