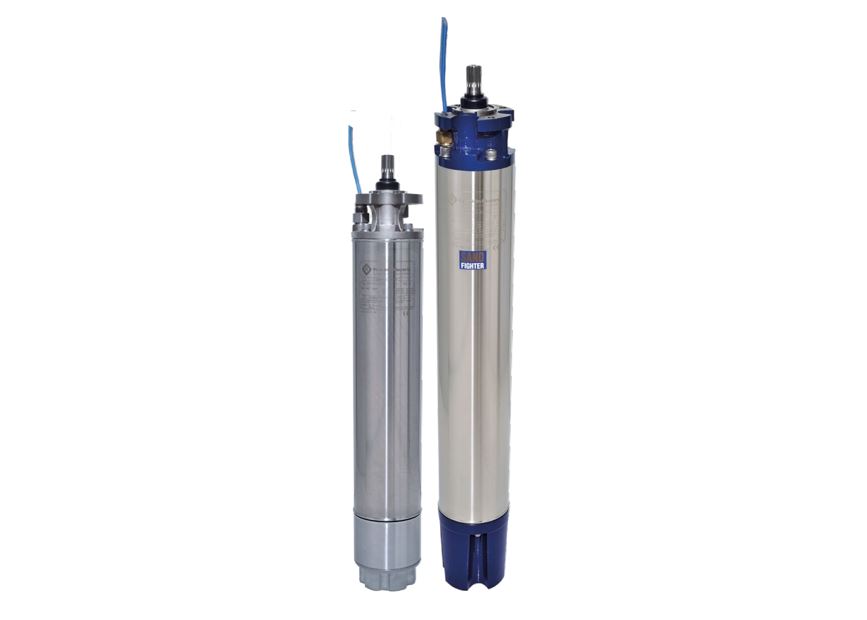

6" Permanent Magnet encapsulated motor (PM) up to 45 kW Franklin Electric


The 6" Synchronous encapsulated motor is characterized by up to 15 points (21%) improved efficiency. The submersible motor’s permanent magnet equipped rotor eliminates rotor losses thus significantly reducing motor current and heat rise. In many cases, reduced motor current equals less drop cable cross sectional area further reducing overall installation cost. Excellent partial-load efficiency of permanent magnet motors allows the entire power range to be covered with only a few different motor sizes, thus offering important stock-keeping advantages.

Benefits & Features

  • Double-flange NEMA mounting design
  • Stainless steel splined shaft
  • StatorShield™ - Franklin encapsulation system
  • Factory filled with Franklin’s non-toxic water soluble fill solution
  • High capacity Kingsbury type liquid lubricated thrust bearing for 100 % maintenance free operation
  • Field replaceable lead using Franklin’s exclusive Water Bloc technology
  • Pressure-equalizing diaphragm, spring pre-loaded
  • SandFighter™ sealing system with SIC mechanical seal and sand slinger
  • High efficiency electrical design for low operation costs
  • All motors manufactured in ISO 9001 certified plants and 100% tested
  • Drinking water approvals

Standard Specification

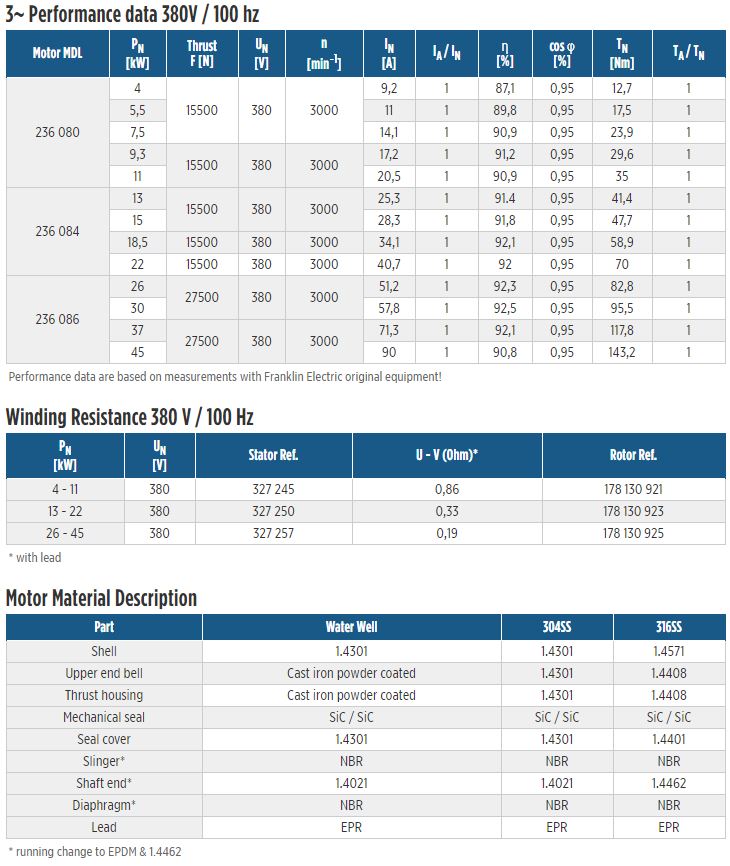

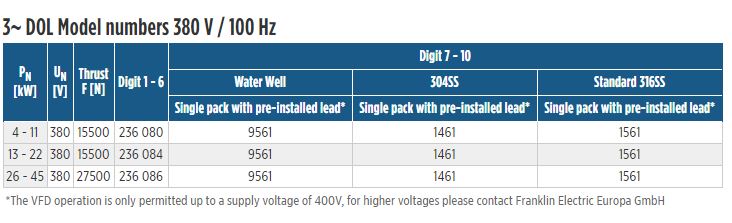

  • Ratings: 3 Phase DOL; 4 - 45 kW, 380V / 100Hz, 3000 U/min
  • Thrust load: 15.5 kN: 4 - 22 kW, 27.5 kN: 26 - 45 kW
  • Nominal ambient temperature: 30 °C
  • Cooling flow
  • 4 - 22 kW: with 0.16 m/s cooling flow
  • > 22 kW: with 0.5 m/s cooling flow
  • Protection IP68 and insulation class F
  • Frequency of starts: 20 starts/hour (with min. 3 minutes resting time), equally distributed
  • Vertical and horizontal operation, shaft upwards
  • Rotation counter clock wise facing shaft end (Rotation reversible)
  • All motors with factory installed leads

OPTIONS

  • Materials 316SS and WW (with powder coated brackets)
  • PT 100 temperature sensor (sold separately)
  • High-thrust design 45 kN
  • Special lead length up to 50 m
  • 60 Hz electrical designs
