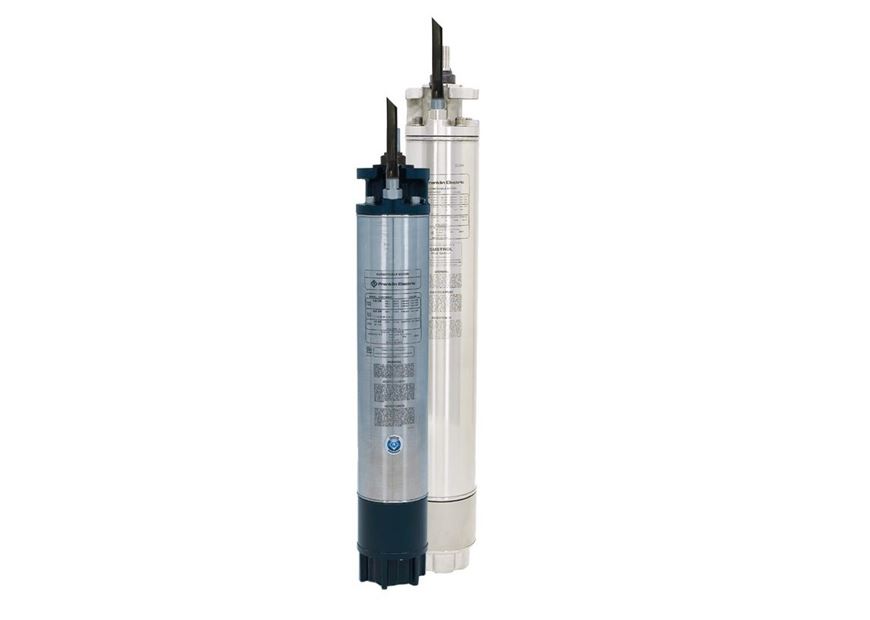

6 inch 3p Encapsulated Pump Motor High Temperature 90dc Franklin Electric

£3,375.00
Part Number
E6037T4005/HT90 / 2766100000
Brand
Franklin Electric
+
Note: These motors are supplied with fixture kit
Franklin Electric
Information

6" 3p Encapsulated High Temp 90dc Franklin Electric Motor


Specifications

  • Up to max. 90 °C ambient temperature
  • 45 kN thrust bearing capacity is standard
  • Increased thrust capacity up to 30 °C
  • No cooling flow in larger wells (12" / open reservoirs) up to 30 °C ambient
  • Hermetically sealed encapsulated stator, anti track, self healing stator resin
  • Removable “Water Bloc” lead connector
  • Sandfighter® motor with SiC-mechanical seal
  • High efficiency electrical design for low operation cost
  • All motors prefilled and 100 % tested. Max. storage temperature -15 °C - + 60 °C
  • High temperature leads
  • Non contaminating FES92 -filled design

Technical Specification

  • 3.7 - 30 kW
  • 6" NEMA double flange
  • Protection: IP 68
  • Starts per hour: max. 20
  • Installation: vertical/horizontal
  • Standard Voltage: 380-415 V/50 Hz, 460 V/60 Hz
  • Voltage tolerance 50 Hz: -10 % / +6 % UN [380-415 V = (380-10 %) – (415+6 %)]
  • Voltage tolerance 60 Hz: ±10 % UN
  • Motor protection: Select thermal overloads according to DIN 60947-4-1, trip class 10 or 10 A, trip time < 10 s at 5 x IN
  • Insulation: Class F
  • Rated ambient temperature: max. 90 °C
  • Cooling flow: min. 0.16 m/s
  • DOL / YΔ - start (pos. of cables 90°)
  • Motor cable in standard with 5m length 3X8,4mm², and 5m single wire round - ground lead mounted on the motor

Options

  • Other voltages
  • Motors complete in 316 SS
  • Motor lead in 5 m or 8 m length
