6 inch Franklin Electric E-tech Encapsulated Submersible Motors.

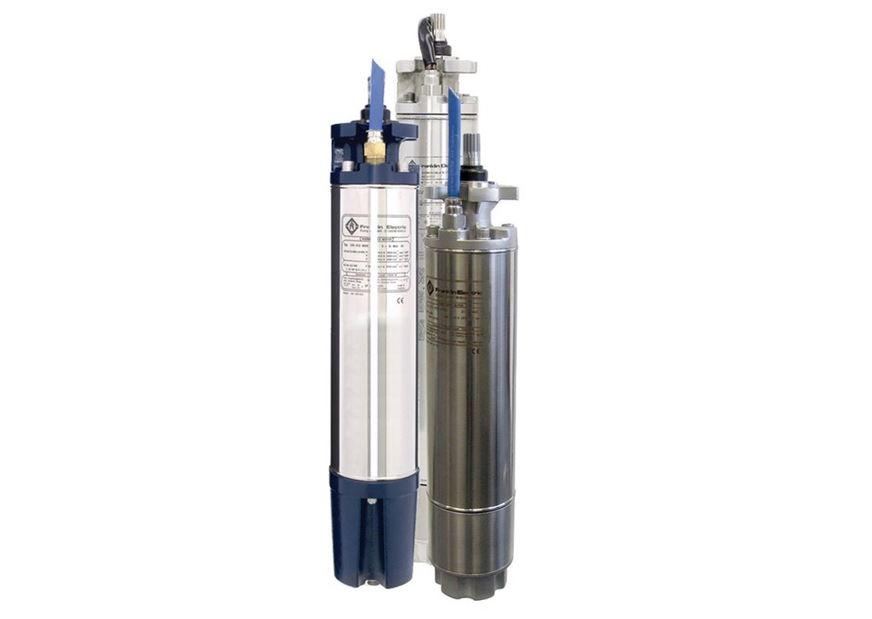

6 inch 3p Encapsulated Pump Motor 316SS Franklin Electric
£3,987.00
Motor
Select:
6" Franklin E6 3P Motor - 4.4kW 5.5HP 380/415V 316: £3,987.00
6" Franklin E6 3P Motor - 5.5kW 7.5HP 380/415V 316: £4,067.00
6" Franklin E6 3P Motor - 7.5kW 10HP 380/415V 316: £4,193.00
6" Franklin E6 3P Motor - 9.3kW 12.5HP 380/415V 316: £4,381.00
6" Franklin E6 3P Motor - 11kW 15HP 380/415V 316: £4,517.00
6" Franklin E6 3P Motor - 15kW 20HP 380/415V 316: £5,003.00
6" Franklin E6 3P Motor - 18.5kW 25HP 380/415V 316: £5,201.00
6" Franklin E6 3P Motor - 22kW 30HP 380/415V 316: £5,656.00
6" Franklin E6 3P Motor - 30kW 40HP 380/415V 316: £6,909.00
6" Franklin E6 3P Motor - 37kW 50HP 380/415V 316: £11,896.00 ✘
6" Franklin E6 3P Motor - 45kW 60HP 380/415V 316: £13,416.00 ✘
Part Number
E6040T4005/A316 / 2366103961
Brand
Franklin Electric
–
+
Add to Basket
Note: These motors are supplied with fixture kit
Share
Tweet
Information
6" 3p Encapsulated 316SS Franklin Electric Motor
Specifications:
Hermetically sealed stator, anti track, self healing stator resin prevents motor burn out
37 and 45 kW Motors up to 50 °C ambient temperature
Removable “Water Bloc” lead connector
Cable material according to drinking water regulations (VDE / ACS / KTW approved)
Sand fighter® Motor with SiC-Mechanical Seal
High efficiency electrical design for low operation cost
All motors prefilled and 100% tested
Max. storage temperature -15 °C - + 60 °C
Non contaminating FES91 -filled design
45kN High Thrust Versions
Technical Specification:
4 - 45 kW
6" NEMA flange
Protection: IP 68
Starts per hour: max. 20
Installation: vertical/horizontal
Standard Voltage: 380-415 V/50 Hz, 460 V/60 Hz
Voltage tolerance 50 Hz: -10% / +6% UN [380-415 V = (380-10%) – (415+6%)]
Voltage tolerance 60 Hz: ±10% UN
Motor protection: Select thermal overloads according to DIN 61947-4-1
Insulation: Class F
Rated ambient temperature: 4- 30 kW up to 30 °C; 37 & 45 kW up to 50 °C
Cooling flow: min. 0,16 m/s
Motor lead in 4m length (VDE / ACS / KTW approved)
Options:
Other voltages
YΔ - start (pos. of cables 90°)
45kN High Thrust Version (Standard in 37 / 45kW Motors)
Motors complete in 304SS and in complete 316 SS
PT 100 temperature sensor (sold separately)
Special Lead lengths up to 50 m
Built-in PTC temperature sensor
Built-in SubMonitor Transmitter (standard for 37 & 45 kW)
Technical
Downloads & Videos
Product Sheet
Click here to download product sheet
