VSY 24 - 6" Submersible Pump E-tech Franklin Electric

CALL US: +44(0)1473 462046
Part Number
VSY 24/04
Brand
Franklin Electric E-tech
Pump Size
6" Pump
Series Max Flow
30m3/h
Series Max Head
383.5m
Series
VSY 24
+

E-Tech VSY24 Series 6" Submersible Well Pumps

Max Flow 30m3/hr Max Head 383.5m

NOTE: Motors are sold separately, please see our range of motors here.

Franklin Electric E-tech
Information

Features

  • Fabricated Noryl® (Registered Trademark of G.E.) impellers and diffusers
  • Compact, reliable and suited to operate in horizontal position
  • Buil-in check valve to protect the pump against water hammer risk
  • External stainless steel sleeve to improve stiffness and assure permanent alignment of all components
  • The hydraulic design is such to enhance the overall efficiency thus reducing energy consumption and making the pump systems more cost effective

Specifications

  • Flow:
  • up to 32m³/h at 50 Hz
  • up to 37 m³/h at 60 Hz
  • Head:
  • up to 346 m at 50 Hz
  • up to 360 m at 60 Hz
  • Maximum allowable amount of sand: 100 g/m³
  • Water temperature
  • Minimum: 0 °C
  • Maximum: +40 °C
  • Rotation: counter clockwise when looking into the discharge
  • Pump can work continuously in vertical or horizontal position
  • Motor adapter in compliance with NEMA Standard
  • Motors: see section Submersible Motors

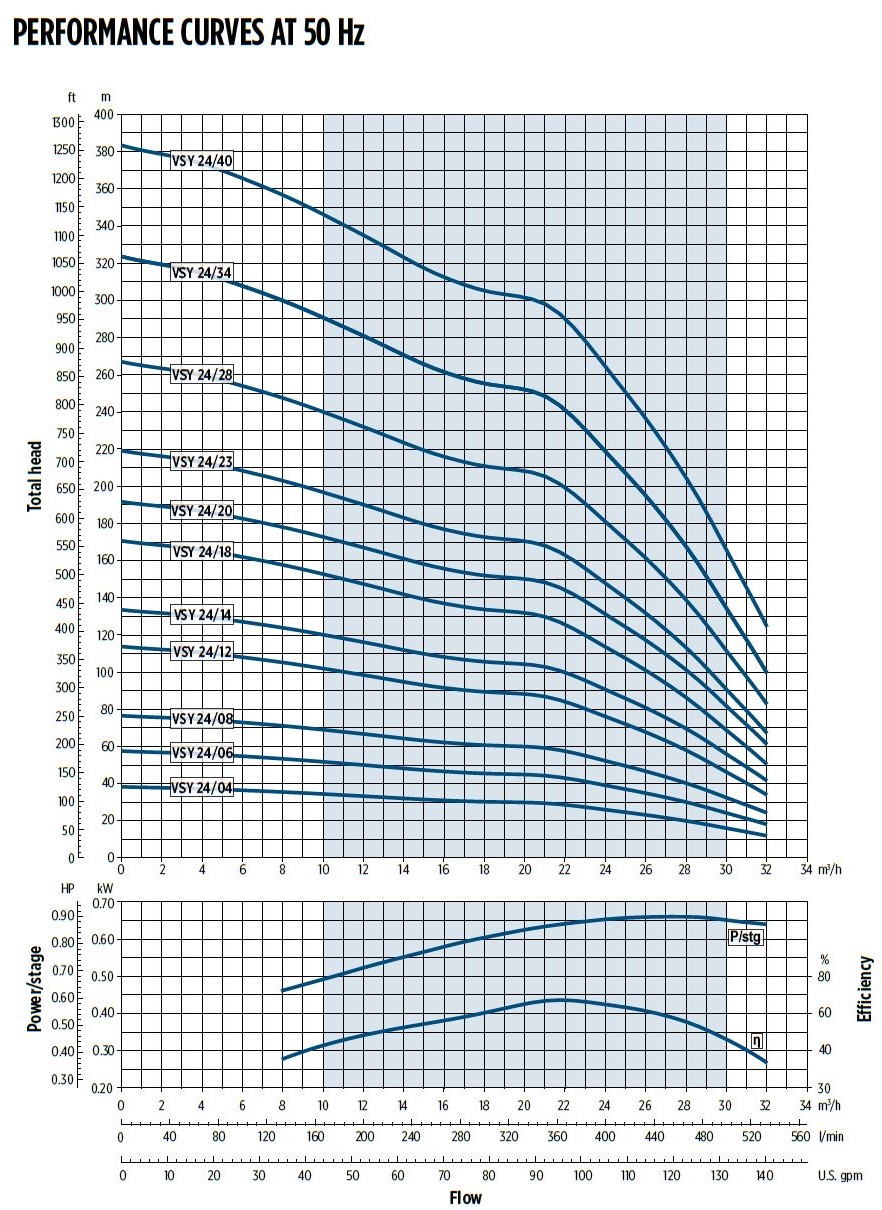

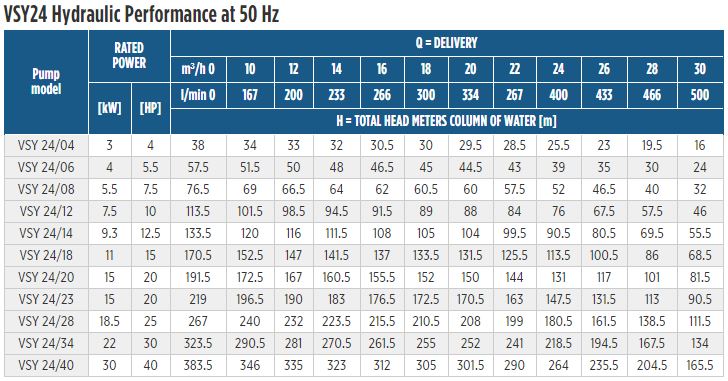

Performance Tables at 50Hz

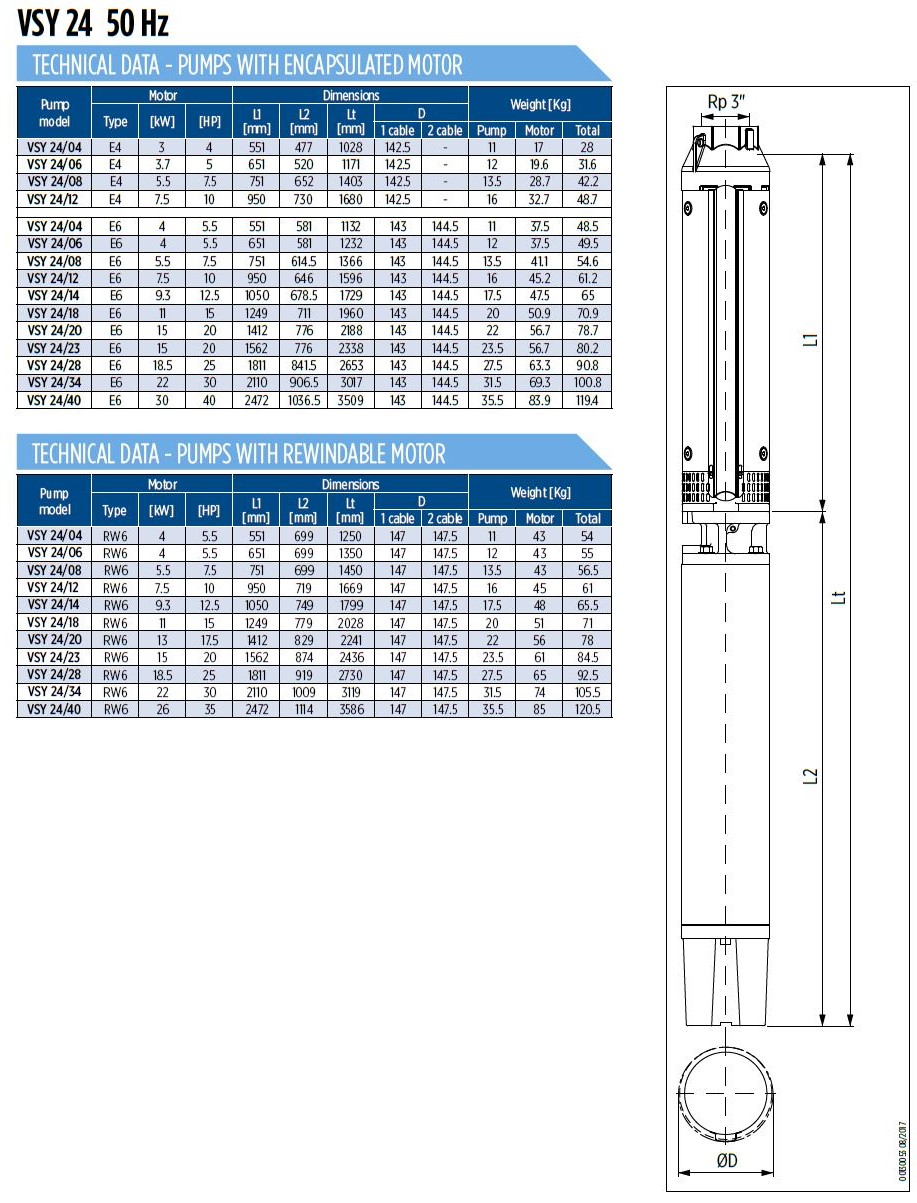

Technical

Downloads & Videos
