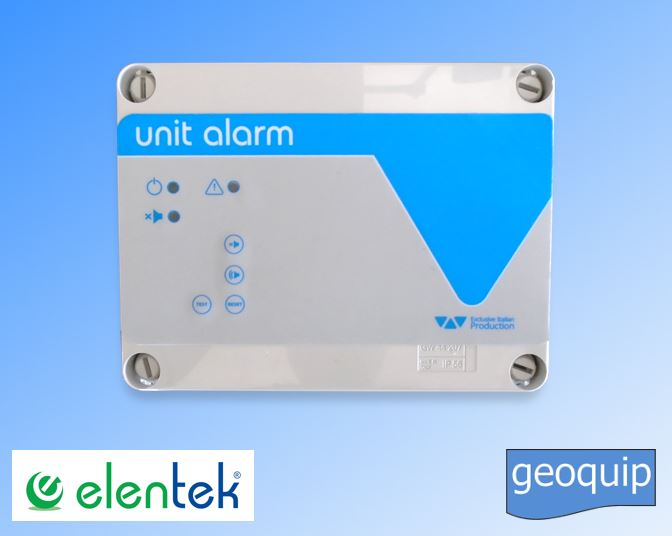

Unit Alarm Control Panel

• Power supply 1 ~ 50/60Hz 230V ±10%;
• 1 Normally open contact for alarm signal from volt free contact ;
• 1 Normally close contact for alarm signal from volt free contact ;
• Green led indicating mains supply;
• Red led indicating alarm;
• Red led indicating beacon disabled;
• Pushbutton for enabling the acoustic alarm;
• Pushbutton for disabling the acoustic alarm;
• Internal selector for selecting alarm restoration mode in automatic or manual;
• Internal selector for activation of the auto switch-off beacon timer ;
• Trimmer for auto switch-off time delay;
• Internal sealed battery 12Vcc 1,2Ah;
• Box in ABS, IP55;
• Ambient temperature: -5/+40 °C;
• Relative humidity 50% a 40 °C (not condensed).

Circuit Diagram
