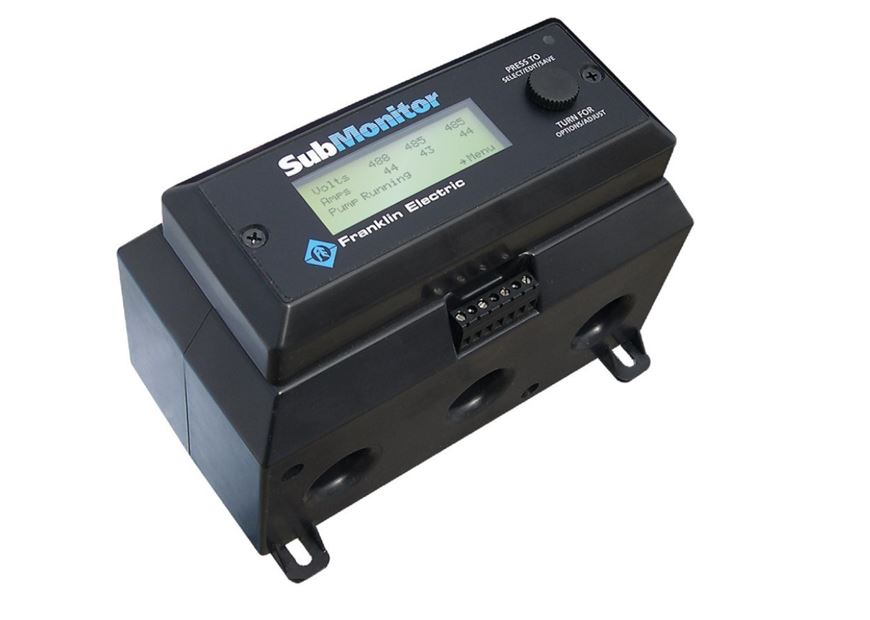

Franklin Electric E-tech SubMonitor is designed to protect 3-phase pumps with horsepower ratings between 3 and 200 hp. Current, voltage and motor temperature are monitored using three integrated current transformers.
A digital display provides current and voltage readings for all three legs and allows the user to set up the SubMonitor quickly and easily. The SubMonitor is the latest innovation in 3-phase pump protection from Franklin Electric. Using state-of-the-art technology, the SubMonitor provides the ultimate protection for a pump and motor. There is simply no better way to protect a large 3-phase submersible pump investment than with a SubMonitor. It is the protection device that can sense overheating straight from the motor windings! And it is made by the world leader in submersible motors - Franklin Electric.
Specifications
- Quick setup to monitor a motor, simply enter the line frequency (Hz), line voltage (Volts), and motor service factor Amp rating
- Digital display indicates voltage and current on all three legs at the same time, and fault messages are in easily understandable text
- Monitors:
- Under/overload
- Under/overvoltage
- Current unbalance
- Overheated motor (Subtrol equipped)
- False start (chattering)
- Phase reversal
- For motors with service factor Amp ratings between 3 and 359 Amps (4 up to 150 kW/ 6" and 8" encapsulated Motors)
- One unit covers the entire range from 190 to 600 Volts
- No need to make additional turns around the CT or add external CTs
- Password protection option
- DIN rail mounting option
- Stores fault, setting changes, and pump run-time, that can be accessed through the display
- Detachable NEMA 3R display unit can be mounted on panel door
- UL 508 Listed
Technical Specification
- Input voltage: 190 – 600 VAC
- Frequency: 60/50 Hz
- Motor service factor Amps: 3 to 359 Amps
- Maximum conductor size through sensors:
- Max. diameter 0.920 in. (23 mm)
- Trip response:
- Motor, under / overload, under / overvoltage, overheat, unbalance: 3 seconds
- Control circuit rating: 1.5 Amp AC, up to 600 Volts
- Signal circuit rating: 1 Аmp AC, up to 250 Volts (incandescent: 100 Watts max.)
- Wiring terminals:
- Wire gauge: #12 to #18 AWG
- Tighten to: 4.5 in-lbs
