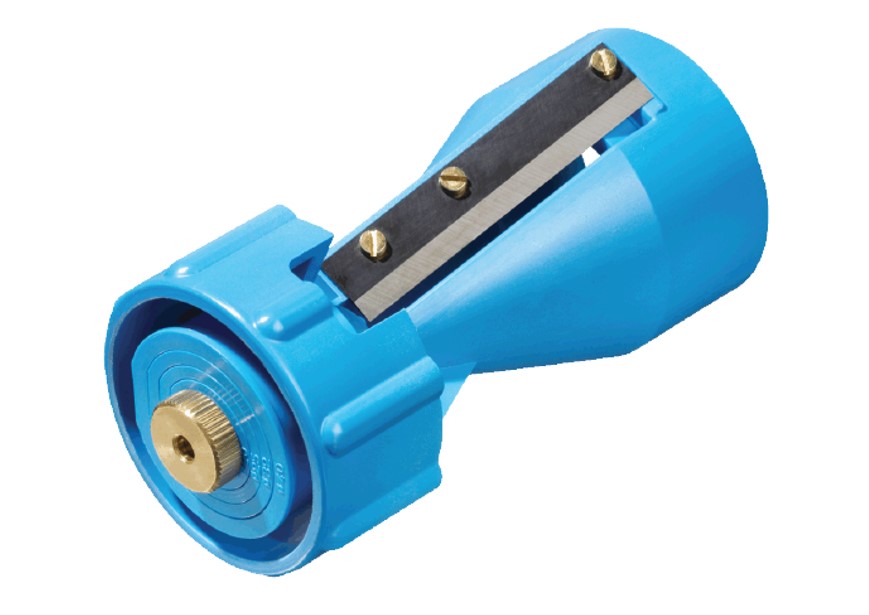

Griffon Chamfering Tool - 16mm to 63mm

PRODUCT DESCRIPTION

For chamfering plastic pipes.

FIELD OF APPLICATION

For plastic pipes of PVC, PVC-C, ABS, PP and PE. Suitable for diameters 16 ≤ 63 mm.

PROPERTIES

Creates a chamfered edge of 15°
Prevents adhesive 'crowding out'

PREPARATION

Surface Requirements: Synthetic pipes need to be clean, dry and free of grease.

APPLICATION

Directions for use: Five adapter rings for Ø 20, 25, 32, 40 and 50 mm are integrated into the chamfering tool. To place these: Loosen the screws. Place the adapter rings of the desired diameter (for example, for a diameter of 40 mm place the adapter ring with a diameter of 50 and 40). Tighten the screw (not further than the adapter rings). The other adapter rings can be placed on the rear of the chamfering tool.

Place the chamfering tool over the pipe and move it around until the entire pipe has a rim of 15°.

Chamfer the pipe end (α = 15) with a chamfering tool. Use the special Griffon chamfering tool for diameters ≤ 63 mm. This ensures a better distribution of the adhesive, preventing the scraping away of the adhesive and creating an easily found edge to simplify mounting.

Points of attention: Do not apply pressure on the pipe.
