EM 5 vertical close-coupled multi-stage pump is designed to meet your pressure boosting needs. The compact, robust design ensures high performance in a wide variety of applications such as domestic fire sprinklers. The EM Series is offered in three flow rates and different power sizes in 1-phase or 3-phase to make sure you have the right pump to fit your application.
Features
- Compact close-coupled design, robust and rust resistant / Superior efficiency and performances
- Floating neck ring in PPS
- Heavy duty oversize motor shaft
- Impellers and diffusers are made of stainless steel in order to achieve durability
- Easy maintenance
- Strong and leak-proof motor rolling bearing fitted in the motor braket
- Pumping of clear non-loaded fluids
- Mechanical seal: Carbon/ceramic/EPDM
Pump Specifications
- Capacities up to 14m³/h
- Heads up to 104m
- Discharge and Suction port: Threaded or Oval connections
- Maximum working pressure 12 Bar
- Direction of rotation: clockwise looking at the pump from the top down
- Maximum ambient temperature 40°C
- Liquid temperature range
- Minimum: -15°C
- Maximum: +90°C for domestic use (uses covered by CEI EN standard 60335-2-41); +110°C only for industrial use (uses other than those covered by CEI EN standard 60335-2-41)
- The hydraulic characteristics are guaranteed, according to ISO standard 9906:2012, grade 3B
Motor Specifications
- Single-phase or Three-phase IE3 motors
- Asynchronous, TEFC (Totally Enclosed, Fan-Cooled)
- 2 pole
- IP55 protection motor
- Insulation class F
Applications
- Small domestic / industrial systems
- Domestic water supply
- Water distribution / pressure boosting
- Irrigation / gardening
- Sprinklers / Fire sprinklers/ Domestic fire sprinklers
- Rainwater recovery
- wash down unit
- Cooling and chilling / heating and conditioning systems

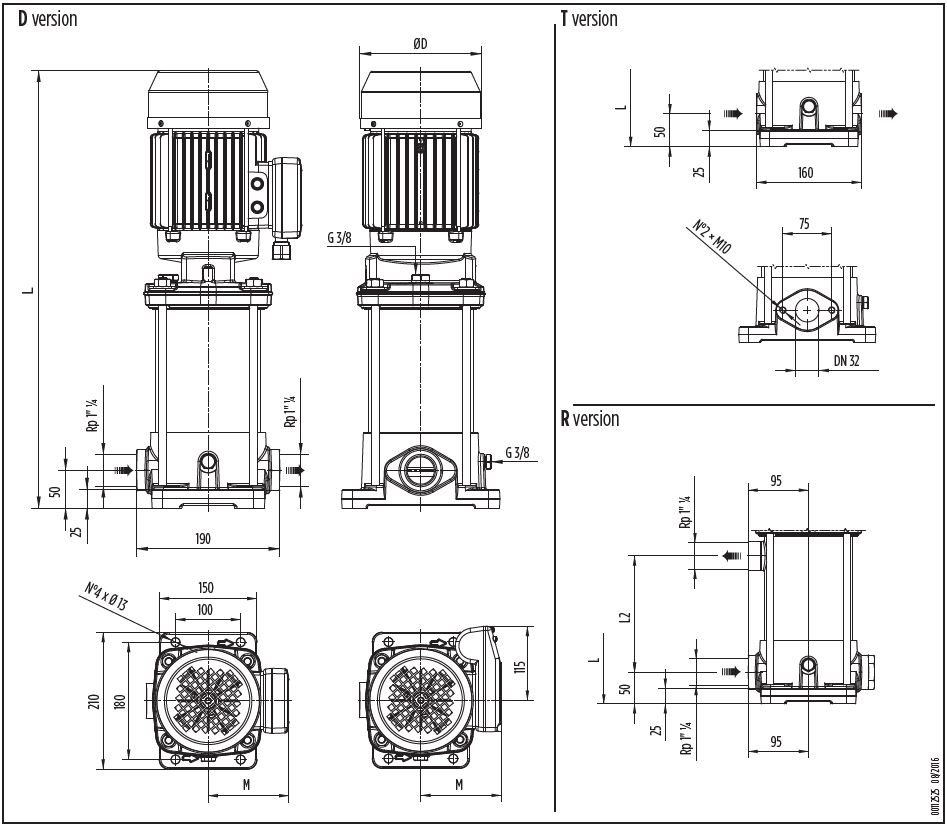

Version
D = In-line threaded
