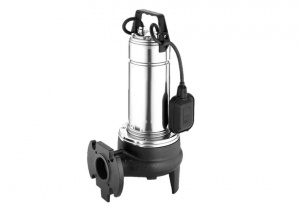

EGF Single phase Sewage Pump for Dirty Water

CALL US: +44(0)1473 462046
Part Number
EGF 5 / n/a
Brand
Franklin Electric E-tech
Series Max Flow
600 m3/h
Series Max Head
15 m
Series
EGF Series
Phase
Single Phase
+

Franklin Electric E-tech EGF Series with Horizontal Flanged and threaded delivery port (DN 50 - G2") Single Phase Sewage submersible pumps for dirty water.

Franklin Electric E-tech
Information

Franklin Electric E-tech EGF Series with Horizontal Flanged and threaded delivery port (DN 50 - G2") Single Phase Sewage submersible pumps for dirty water.

Construction

  • Single-impeller submersible pumps, with free-flow (vortex) impeller
  • EGT: with vertical threaded delivery port (G 2”)
  • EGF: with horizontal flanged and threaded delivery port (DN 50 - G 2”)
  • Double mechanical shaft seal with interposed oil chamber, to protect against dry-running

Applications

  • For domestic or industrial waste water, dirty water with solids up to 50 mm grain size, for liquids which are compatible with the pump materials
  • For draining rooms or emptying tanks
  • Extraction of water from ponds, streams or pits and for rainwater collection

Operating conditions

  • Liquid temperature: up to 35 °C
  • PH value: 6-11
  • Maximum immersion depth: 5 m
  • Minimum immersion depth: 275 mm
  • Continuous duty (with submerged motor)

Motor specification (EGT and EGF Series Ranges)

  • 2-pole induction motor, 50 Hz (n ≈ 2900 rpm)
  • EGT/EGF:
  • Single-phase 230 V ± 10 %, with float switch and thermal protector
  • Incorporated capacitor
  • Cable: H07Rn-F, 3G1 mm2, length 10 m, with plug CeI-UneL 47166
  • EGT...T/EGF...T:
  • Three-phase 230 V ± 10 %; Three-phase 400 V ± 10 %
  • Cable: H07Rn-F, 4G1 mm², length 10 m, without plug
  • Insulation class F
  • Protection Ip X8 (for continuous immersion)
  • Triple impregnation humidity-proof dry winding
  • Constructed in accordance with: EN 60034-1; EN 60335-1, EN 60335-2-41

Available on request

  • Other voltages
  • Frequency 60 Hz
  • Other mechanical seal
  • Cable length 20 m
  • Motor suitable for operation with frequency converter
  • 3-phase pumps with incorporated float switch
