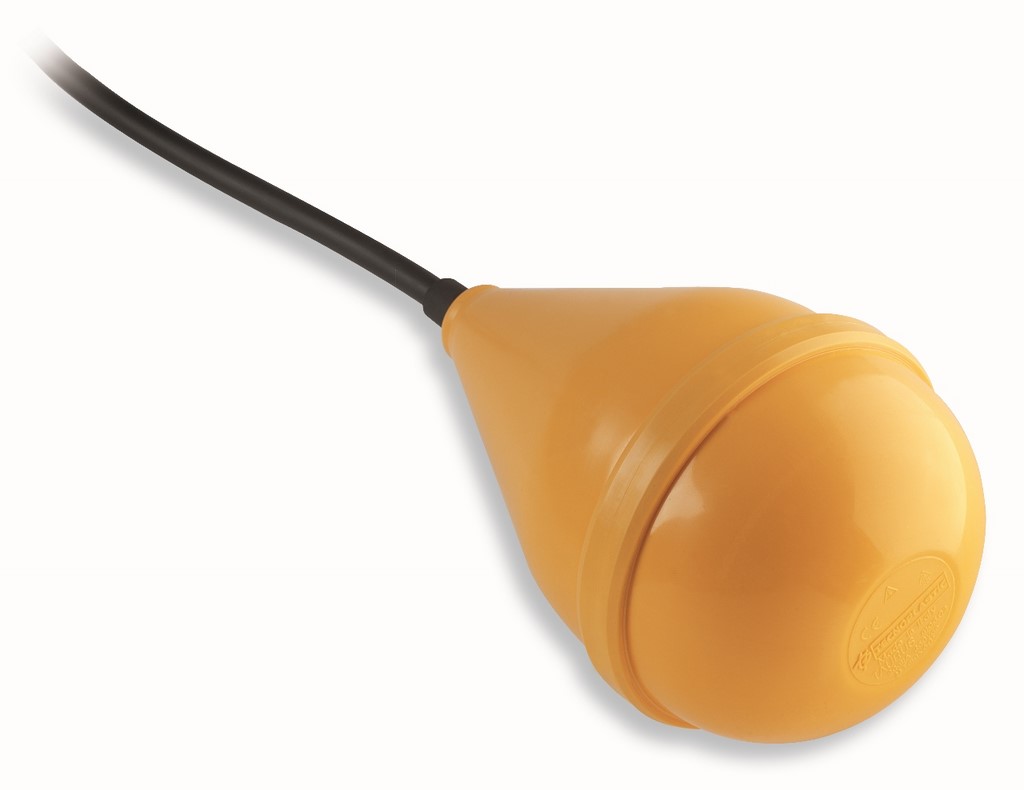

Bulb Float Switch
Bulb Float Switch
Bulb Float Switch

Bulb Float Switch

£62.50
Part Number
ES4B-TP-TU10-A1N
Brand
Geoquip Water Solutions
+

Bulb float with three watertight chambers level regulator with freely suspended trim variation.

10m - H05 and 10m H07

Unlike traditional floats that float on the water surface, the Bulb Float with its special construction with integrated counterweight, remains underwater.

Please contact us if you would like any technical advice or price and availability information.

Information

Bulb float with three watertight chambers level regulator with freely suspended trim variation. Unlike traditional floats that float on the water surface, the Bulb Float with its special construction with integrated counterweight, remains underwater.

Used in couple with another of the same type allows you to adjust the levels of minimum and maximum.

It’s also possible to use a third and fourth regulator respectively for minimum and maximum alarm.

Suitable for level regulation in drainage plants, pumping stations and dirty water systems.



Technical
H07 Cable Bulb Float
  • Cable: H07 RN-F 3x1 - Ø 8,8mm (2 functions)
  • Casing: Polypropylene
  • Grommet: EPDM
  • Power Supply: 10(8)A 250V
  • Activation Angle: 20º
  • Depth: max. 20 m - 65,6 ft
  • Temperature: max. +50°C (+122°F)
  • Specific Gravity: 0,95 - 1,05 kg/dm³
  • Protection Grade: IP 68
  • Class: I - II
  • Certificates: CE - TUV - EAC

H05  Cable Bulb Float

  • Cable: 05VV-F 3x1mm²
  • Operating voltage: 230V/50 Hz
  • Nominal voltage: 250 V
  • Switching current (Max): 10(8) A
  • Cable connection with terminals without connections
  • Temperature (Min): 0ºC
  • Temperature (Max): 50ºC
  • Degree of protection: IP68
  • Contact type: 1 changeover
  • Material: Plastic
  • Cavo: neoprene, IMQ certified
