Raising of water from deep wells and tanks, civil and industrial raising systems, pumping liquids, sampling fluids in contaminated sites, hydraulic barriers. The pumps can not be installed in potentially explosive atmospheres..
Applications
Raising of water from deep wells and tanks, civil and industrial water raising systems, pumping liquids, sampling fluids in contaminated sites, hydraulic barriers. The pumps can not be installed in potentially explosive atmospheres.
Features

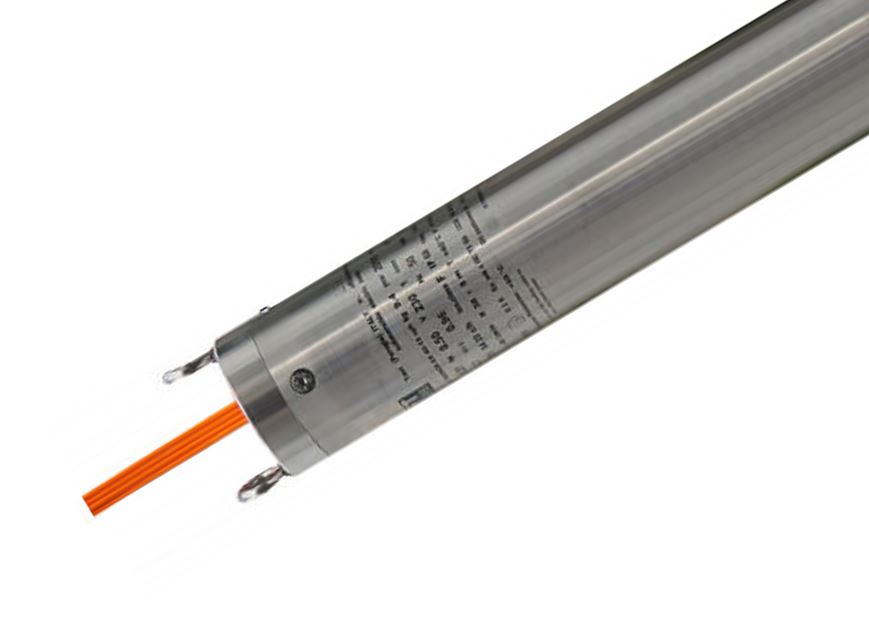

• Multistage centrifugal electric submersible pumps for 3” wells.
• External pump case, delivery port, suction port and other components in AISI 316 stainless steel.
• Impellers and diffusers in special technopolymer.
• Electric pumps produced directly with the meters of TPE-E 4G1,5 electric cable required without electrical junctions.
Motor
2 poles asynchronous motor, 50 Hz, 2850 rpm.
• Class F insulation. • IP68 protection.
• Working voltage: single-phase 230 V, three-phase 400 V.
• Electric motor cooled by non-toxic, non-polluting liquid.
Operating Conditions
The pump can not operate in dry conditions.
• Pump body always completely submerged.
• Temperature of pumped liquid: min 0 °C – max 40 °C.
• Frost free location.
• Vertical operating position (horizontal on request).
• Maximum immersion depth: 20 m. • Maximum number of starts per hour: 20

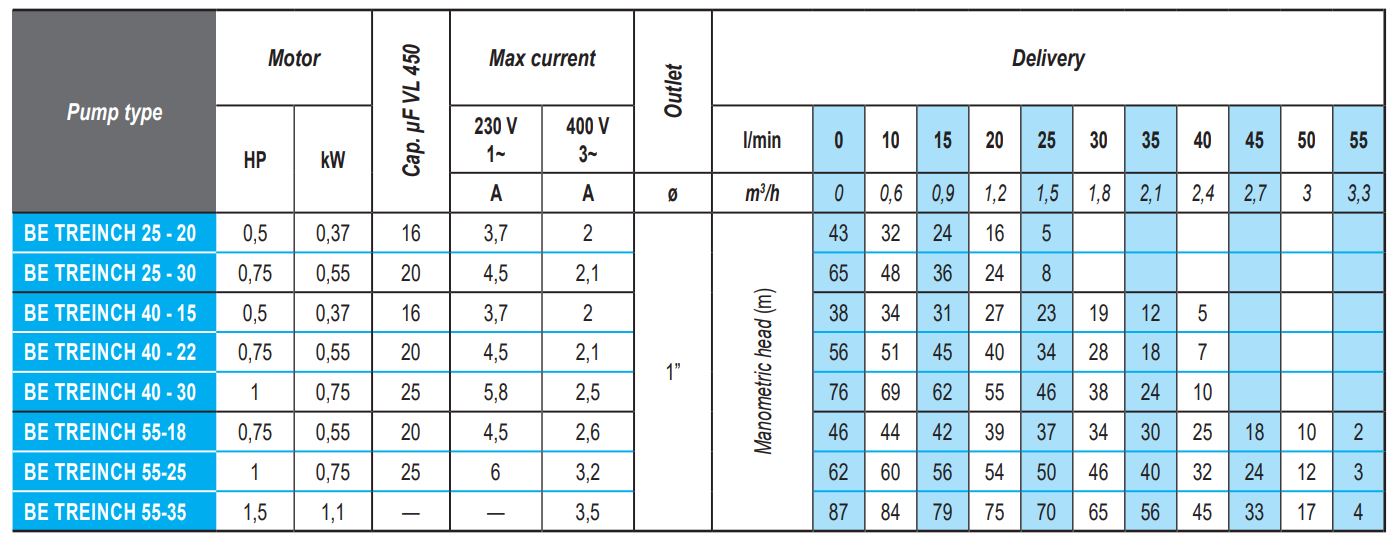

Technical
