LEGACY
PRODUCT

Max Flow 21m3/hr F Type

CALL US: +44(0)1473 462046

Pump

Part Number

FP4L020

Brand

Felsom

Pump Size

4" Pump

Series Max Flow

21m3/hr

Series Max Head

181m

–

+

4" Floating Impeller Submersible Borehole Pump
Max flow 21.0m³/hr Max head 181 m

Legacy product

Alternative pump;

Information

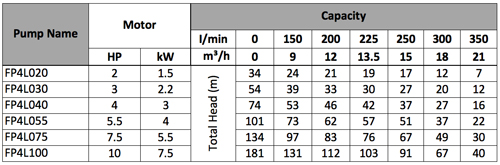

Performance Table

Performance Table

Applications
Domestic and Industrial water supply, Fire-fighting systems, Pressurising water systems, Irrigation, Process Plants

Materials
AISI 304 stainless steel for top outlet and bottom support, external jacket, diffuser casing, screen and cable guard
AISI 420 stainless steel for shaft
AISI 316L/304 stainless steel for coupling
Impellers, diffusers and bushes are fibre glass reinforced PA66 .

Operating data
Max. water temperature 35'C
Max. sand content: 185g/m3
Max startings per hour: 15
Min. recommended head of water above pump suction: 1m

Technical

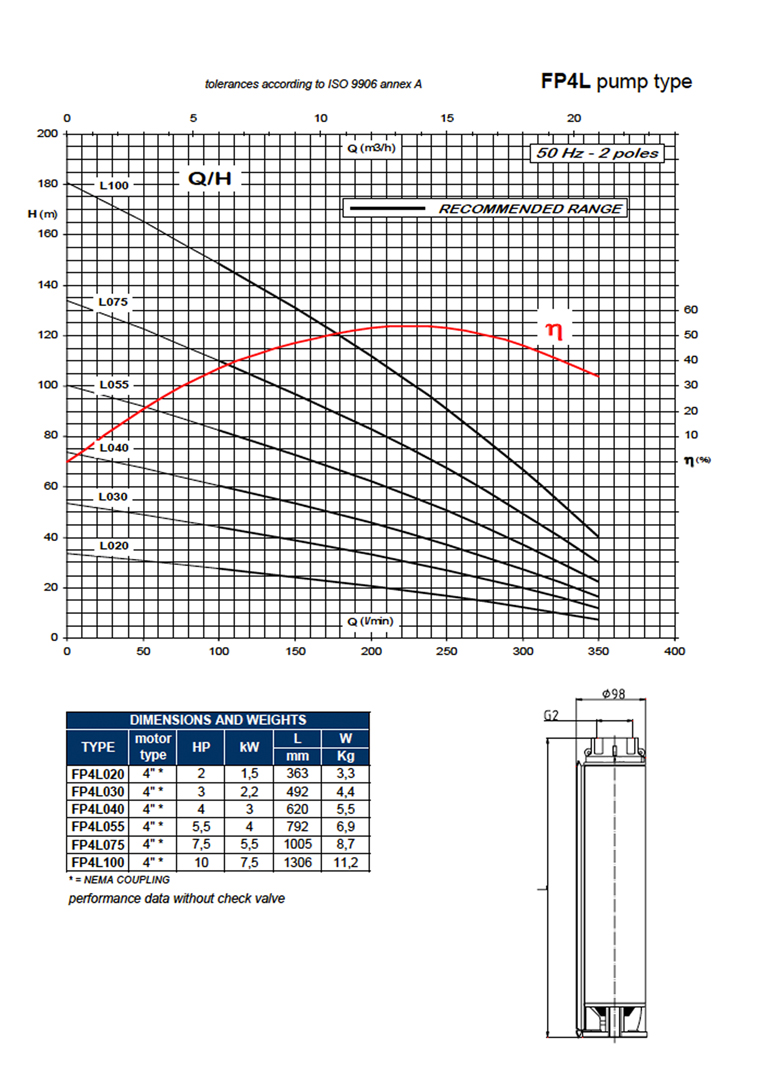

FP4L Data Sheet
