Max Flow 9m3/hr F Type

CALL US: +44(0)1473 462046

Pump

Part Number

FP4F010

Brand

Felsom

Pump Size

4" Pump

Series Max Flow

9m3/hr

Series Max Head

335m

–

+

4" Floating Impeller Submersible Borehole Pump
Max flow 9m³/hr Max head 335 m

Legacy product

Alternative pump;

Information

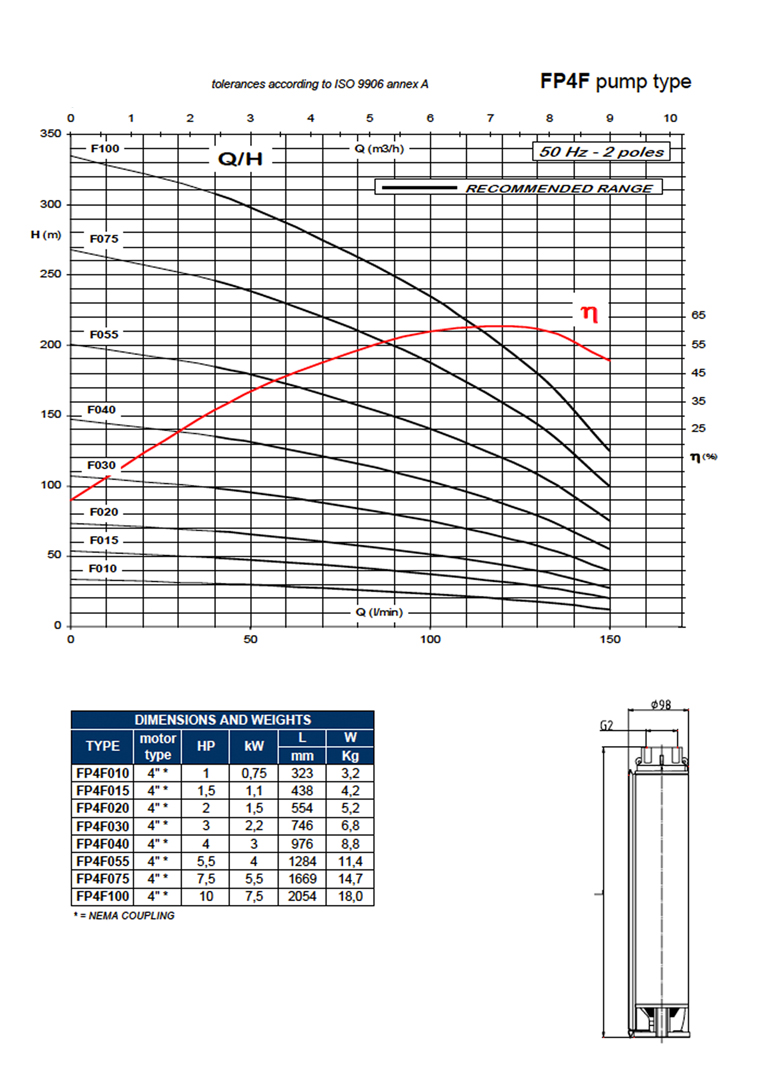

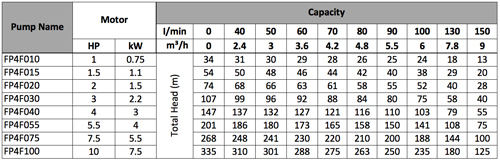

Performance Table

Applications
Domestic and Industrial water supply, Fire-fighting systems, Pressurising water systems, Irrigation, Process Plants

Materials
AISI 304 stainless steel for top outlet and bottom support, external jacket, diffuser casing, screen and cable guard
AISI 420 stainless steel for shaft
AISI 316L/304 stainless steel for coupling
Impellers, diffusers and bushes are fibre glass reinforced PA66 .

Operating data
Max. water temperature 35'C
Max. sand content: 185g/m3
Max startings per hour: 15
Min. recommended head of water above pump suction: 1m

Technical

Downloads & Videos
