LEGACY
PRODUCT

Max Flow 2.1m3/hr F Type

CALL US: +44(0)1473 462046

Pump

Part Number

FP4A005

Brand

Felsom

Pump Size

4" Pump

Series Max Flow

2.1m3/hr

Series Max Head

359m

–

+

4" Floating Impeller Submersible Borehole Pump
Max flow 2.1m³/hr Max head 359 m

Legacy product

Alternative pump;

Information

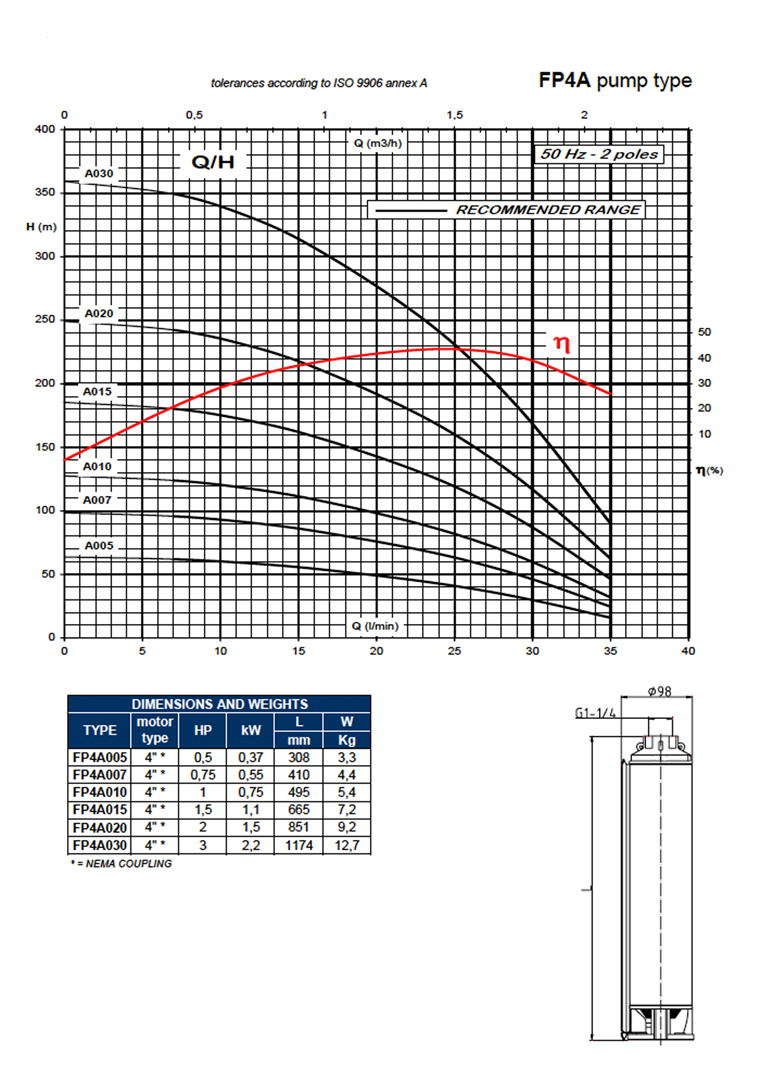

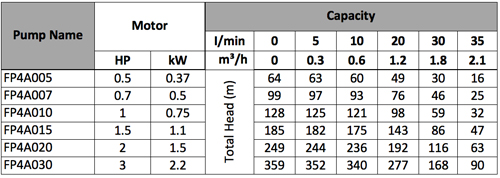

Performance Table

Applications
Domestic and Industrial water supply, Fire-fighting systems, Pressurising water systems, Irrigation, Process Plants

Materials
AISI 304 stainless steel for top outlet and bottom support, external jacket, diffuser casing, screen and cable guard
AISI 420 stainless steel for shaft
AISI 316L/304 stainless steel for coupling
Impellers, diffusers and bushes are fibre glass reinforced PA66 .

Operating data
Max. water temperature 35'C
Max. sand content: 185g/m3
Max startings per hour: 15
Min. recommended head of water above pump suction: 1m

Technical

Downloads & Videos
