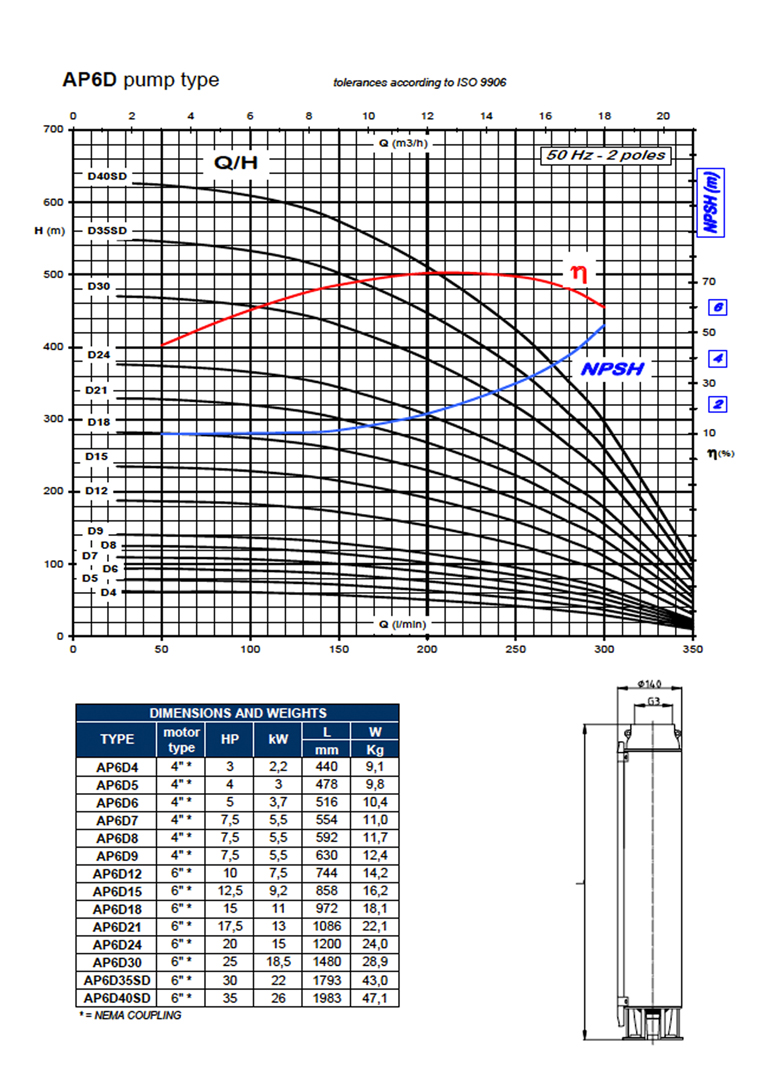

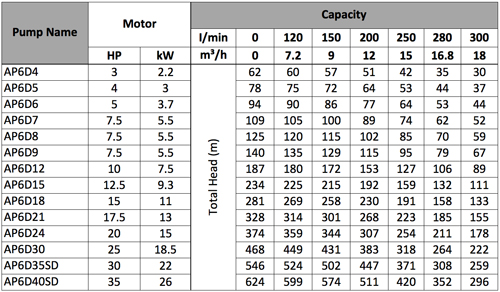

Performance Table
Applications
Domestic and Industrial water supply
Acqueducts
Fire-fighting systems
Pressurising water system
Shower and running irrigation
Several plants
Materials
AISI 304 stainless steel for top and bottom
AISI 420 stainless steel for shaft
AISI 430F stainless steel for coupling
AISI 304 stainless steel for external jacket
Diffuser casing, screen and cable guard
PA66 fiber glass reinforced for bushes
Noryl for impellers and diffusers
Operating data
Capacity up to 66m3/h
Head up to 730m
Power up to 43kW
Max. water temperature 30dc
max. sand content: 60g/m3
Direction of rotation: CCW facing delivery side
Min. recommended head of water above pump suction: 1m
